CADintosh is a 2D-CAD program for technical and architectural drawings.
Features include:
- Interactive window redrawing (you can work in the same time of the window redrawing)
- Number of elements limited by memory
- Pen oriented mode: 8 line widths/line colors/pens
- Individual mode: line width from 0.0 to 99.99 mm, pattern and colors
- It has a lot of tools like lines, arcs, dimensions, splines, hatching etc.
- Import and export HPGL, DXF, and PICT
- 6 line types (solid, dash, dot-dash, phantom, zigzag, dotted)
- 32000 groups
- 1024 layer
- Alternative units in inches or freely definable
- Shareware version has a simple layer filter (easy to use)
- Registered version has a additional extended layer filter (named filter sets, palette with name of filter)
- Shareware version has internal symbols (number of symbols only limited by memory)
- Registered version has additional external symbol libraries and more simple work with symbols
- User preferences saved in the drawing
- Runs native on MacOS X
What’s New:
Version 8.8.1:
New features
- transform: rescale non-proportional
- Cubic Bezier lines
- Import of PDF with extraction of elements
Updates features
- size of some dialogs
- rename option in edit print edit
- layer attributes: option to show only used layers
- updated to Sparkle 2
- system requirements changed to macOS 10.11 up to macOS 12 (Monterey)
- DXF/DWG export
- moved access to DXF/DWG/IGES/Holes options to the save panel
- moved editing x-line type/marker into edit attributes
- moved editing hatching attributes into edit attributes
- added individual marker sizes to lines
- line point to point in freehand mode: second click with shift key draws vertical/horizontal line
- fractions display in info window can be set to zero
Bug fixes
- auto catch issue within duplicate symbols
- symbol library sorting issue fixed upon adding a symbol
- possible wrong command line instructions after changing tool with the menu or context menu
- possible crash during customization of the touchbar fixed
- fixed catching issue of lines/arcs within symbols if x- and y-factor are different
- fixed issue of drawing arcs in symbols with different x and y scales

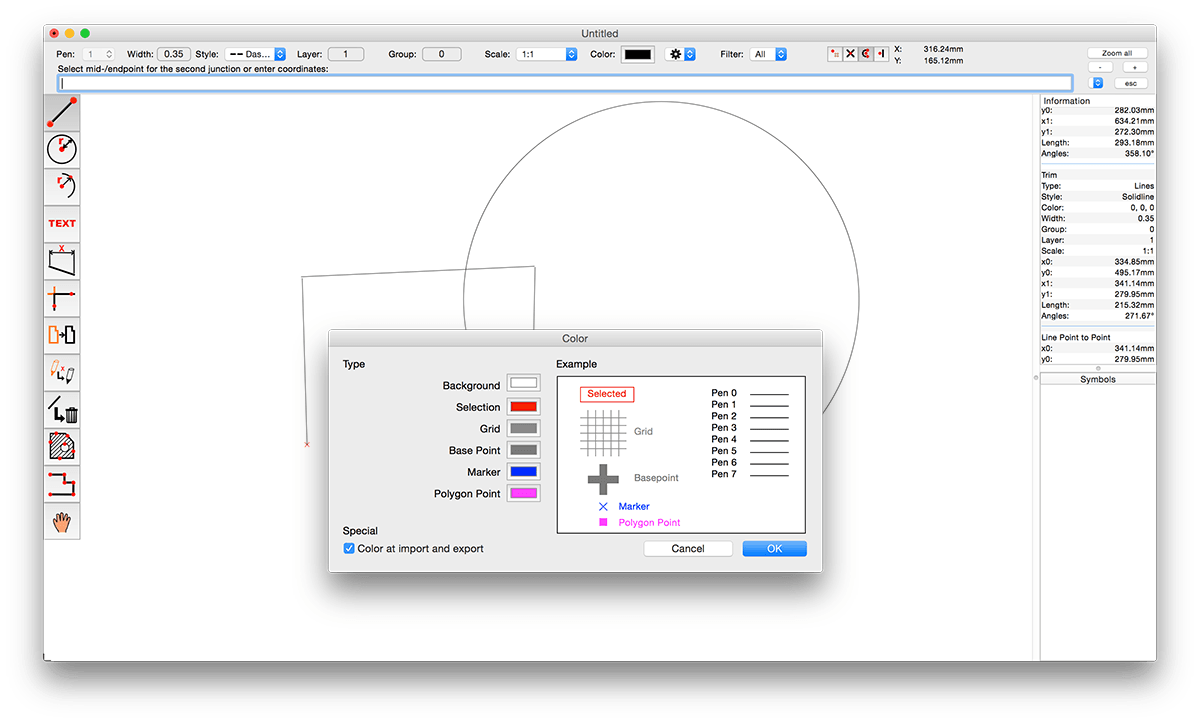

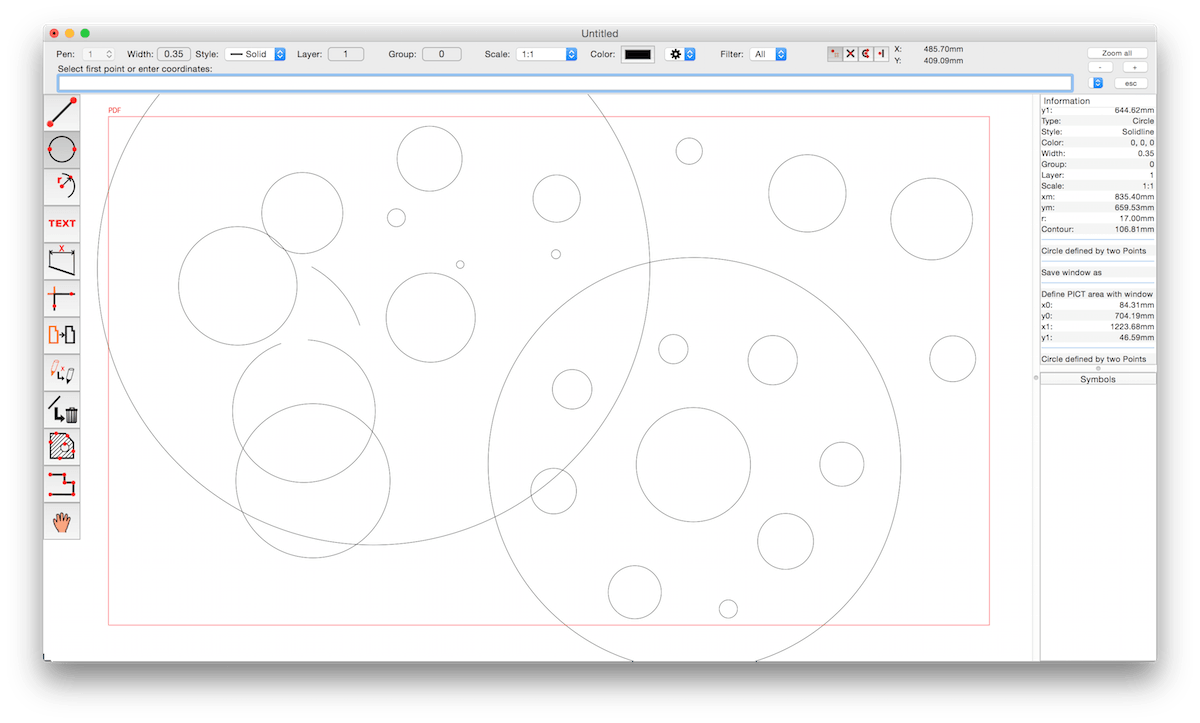

Screenshots:
