Deflection Pro 6 0 0 download
Deflection is the most interactive, fast, and precise app available for structural beam analysis. Design visually and obtain engineering results, graphs, and equations instantaneously!
Simply place loads and supports on the beam, and see how it bends. Find a cross section in the built-in library, or define a custom shape. Deflection, internal stresses, and other useful results are automatically updated.
This software is the result of over six years of continuous development and innovation aimed at mechanical engineering, civil engineering, and structural engineering. This tool will help you apply beam elastic theory from day 1 as you are learning Mechanics of Materials, and it will be your go-to pocket reference any time in the future.
RESULTS

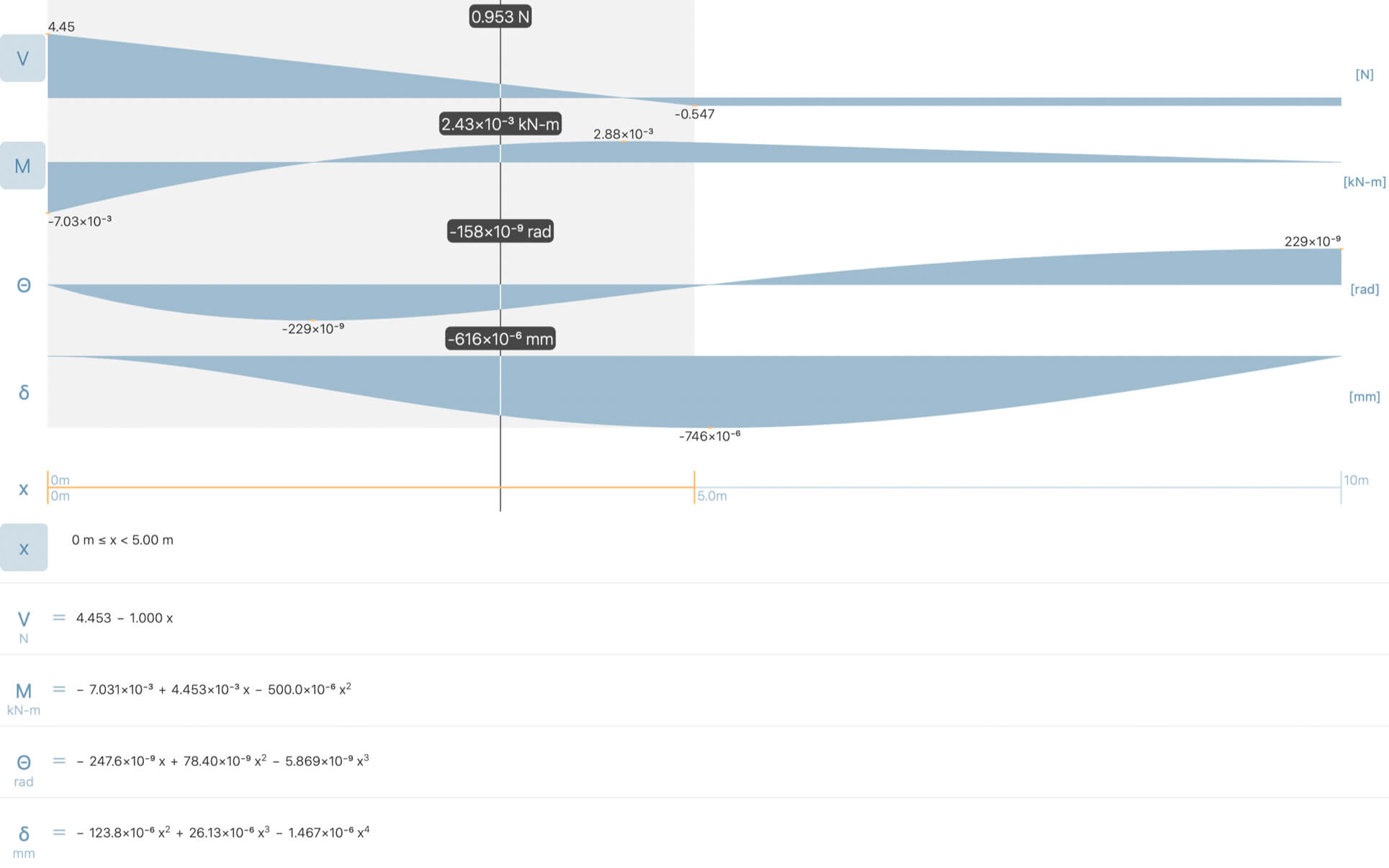

Obtain design results and diagrams in real-time.
- Shear force
- Bending moment
- Deflection distance
- Internal bending stress
- Internal shear stress
CROSS SECTION DATABASES
Specify values directly, or find common shapes and materials using the built-in databases.
- United States
- Europe
- Japan
- India
- Russia
- Great Britain
- Canada
- Australia

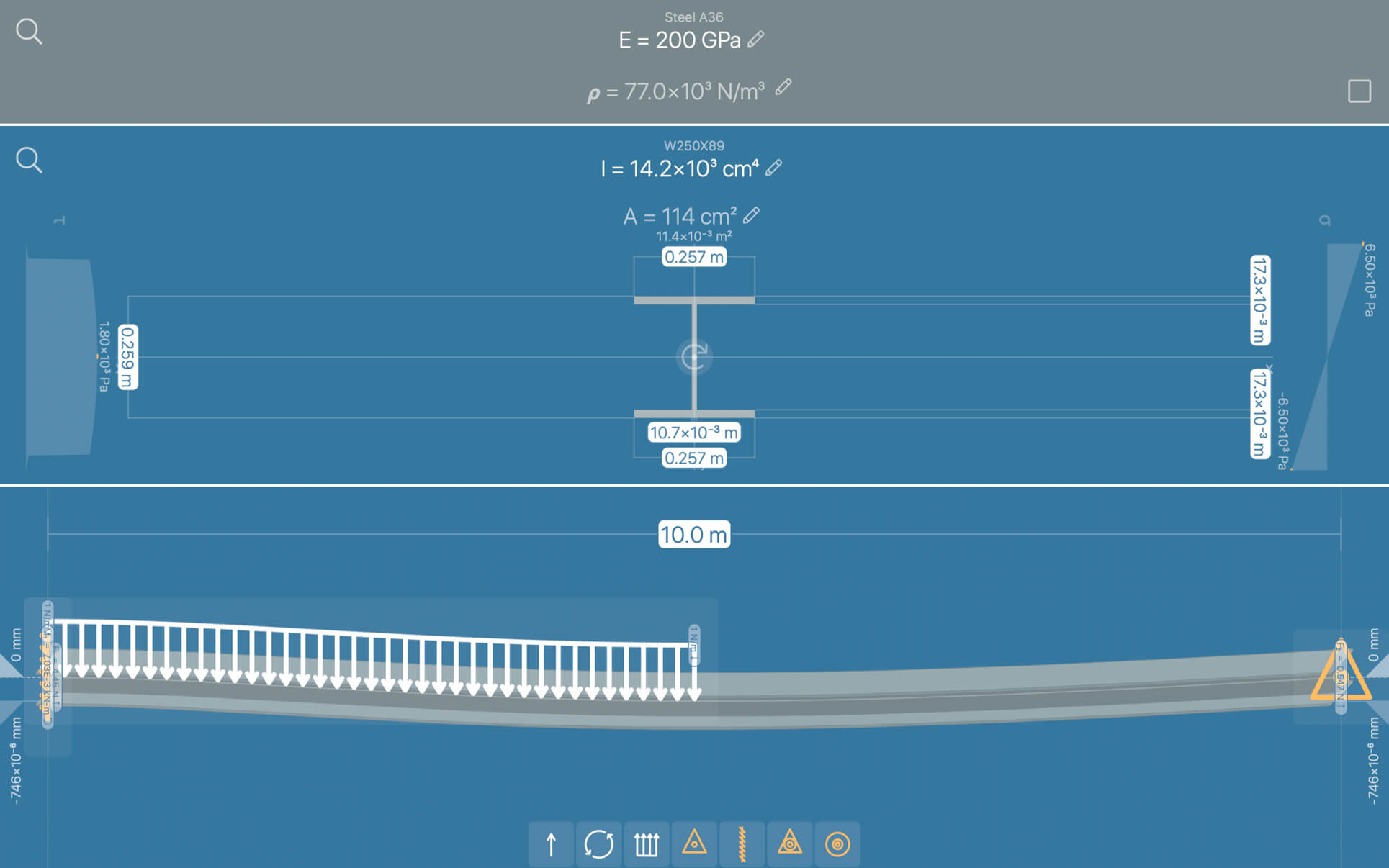

CROSS SECTION EDITOR
Edit built-in cross sections. Shape properties are automatically calculated.
- Moment of inertia
- Area
UNLIMITED LOADS AND SUPPORTS
Simply drag any load or support on the beam.
- Concentrated point loads
- Distributed loads
- Moment loads
- Simple supports
- Fixed supports
- Fixed hinges
- Floating Gerber hinges
OTHER FEATURES
- Apply beam self-weight optionally
- Automatic detection of local maxima and minima in diagrams
- Unlimited design files
- Quick-start templates
- Metric and standard measurement units
What’s New:
Version 6.0.0
Deflection Pro is our new product tier, and a lot of work has gone into making this first release possible. Deflection Pro has more advanced functionality than Deflection and Deflection Lite, and you can use it on both iOS and macOS. Future updates will continue building upon this foundation. As always, we welcome your comments, questions, and suggestions via [email protected]
- NEW: Checks for internal bending and shear stresses. Computed stresses are compared against the beam’s strength capacity. By default, for ductile metals this is taken as the yield strength, and for wood, this is taken as the maximum fiber stress.
- NEW: Check for beam deflection with respect to the specified deflection limit.
- NEW: Cross sections and materials in the library are automatically evaluated against the current design. Each row is color coded based on the results of the individual checks performed.
- NEW: Common international steel standards and some new wood grades added to the library.
- NEW: Material strengths that depend on the cross section dimensions are automatically calculated.
- NEW: Redesigned app layout that will allow us to continue adding more tools in the future.
- IMPROVED: App responsiveness and stability

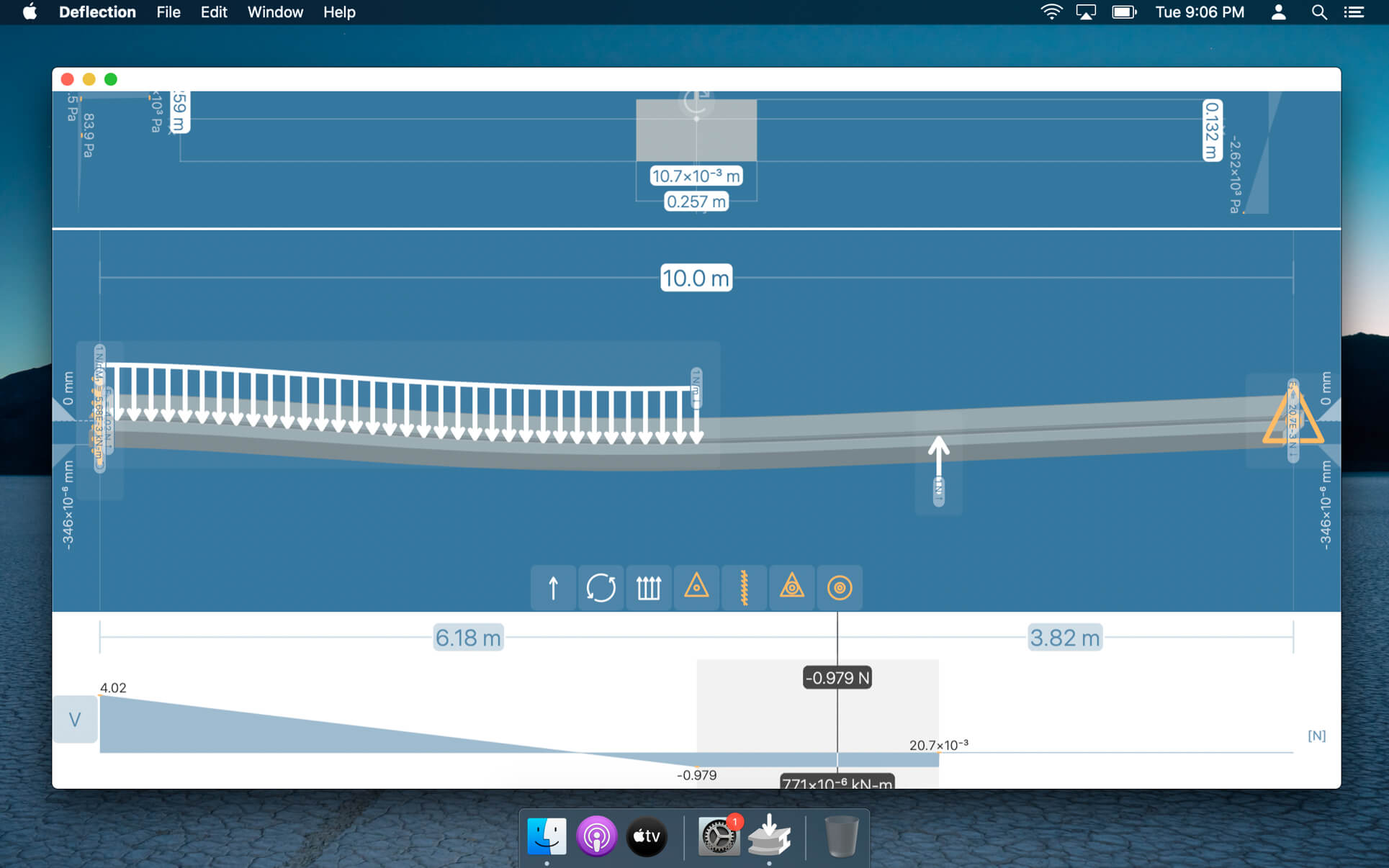

Screenshots:
