CADintosh is a 2D-CAD program for technical and architectural drawings.
Features include:
- Interactive window redrawing (you can work in the same time of the window redrawing)
- Number of elements limited by memory
- Pen oriented mode: 8 line widths/line colors/pens
- Individual mode: line width from 0.0 to 99.99 mm, pattern and colors
- It has a lot of tools like lines, arcs, dimensions, splines, hatching etc.
- Import and export HPGL, DXF, and PICT
- 6 line types (solid, dash, dot-dash, phantom, zigzag, dotted)
- 32000 groups
- 1024 layer
- Alternative units in inches or freely definable
- Shareware version has a simple layer filter (easy to use)
- Registered version has a additional extended layer filter (named filter sets, palette with name of filter)
- Shareware version has internal symbols (number of symbols only limited by memory)
- Registered version has additional external symbol libraries and more simple work with symbols
- User preferences saved in the drawing
- Runs native on MacOS X
What’s New:
Version 8.7:
New features
- menu Layer: update filter with current
- menu Layer: rename filter
- menu File: Save Copy as
Updates features
- imperial scales in popup
- edit color tool
- sample drawings and pages updated
- added filter option for symbol list
- localizations
- only used custom pattern are embedded into the drawing to get smaller files
- edit elements: new create copy button
- edit elements: xline: paste of coordinates from clipboard
- optimized refresh of large symbol lists
- added symbol list size slider
- Quick Layer and Layer Attributes show layer with content
- Save as CSV in addition to XLSX
- Preferences: Color and size of automatic detection indicator adjustable
- DXF: improved HATCH support
- Split tool marks the split point
- update check for manuals with option to load updated manuals
Bug fixes
- display issue with drawing data fixed
- possible line style issue fixed
- possible hatching issue fixed
- possible crash upon export as DXF/DWG with incorrect layer values fixed
- fixed focus issue after click into symbol list
- fixed return key issue during function insert symbol
- fixed undo issues after changing only the width or color
- fixed a bug in the revert command

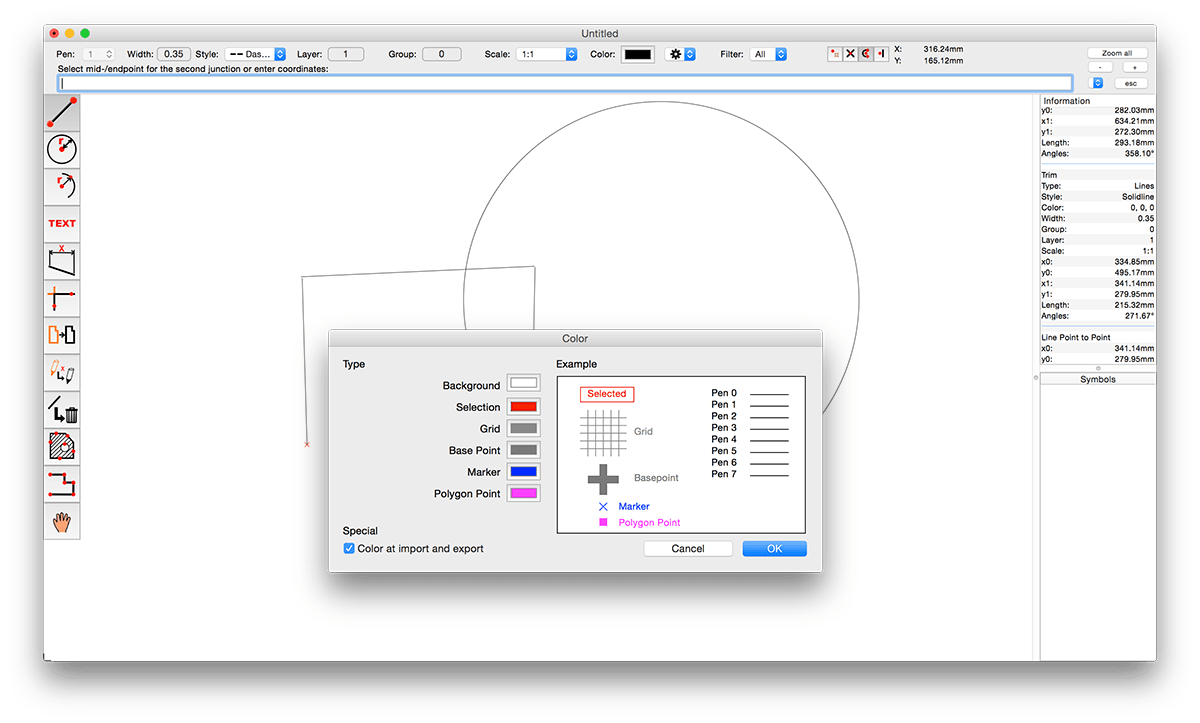

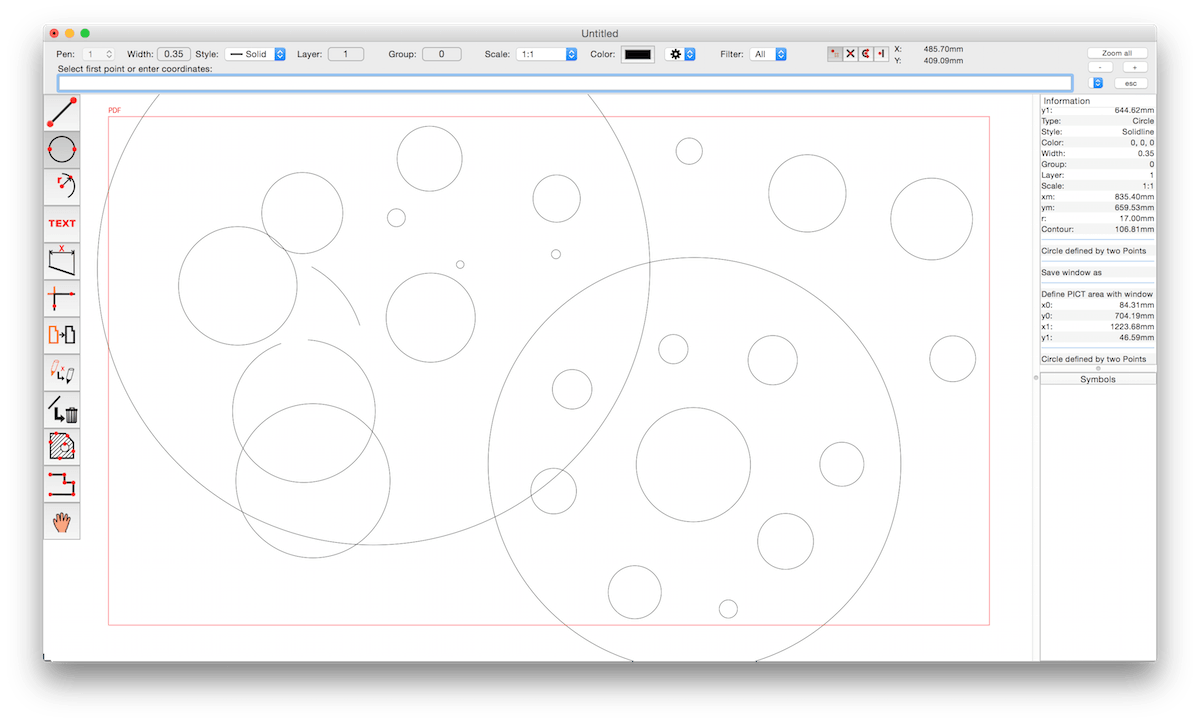

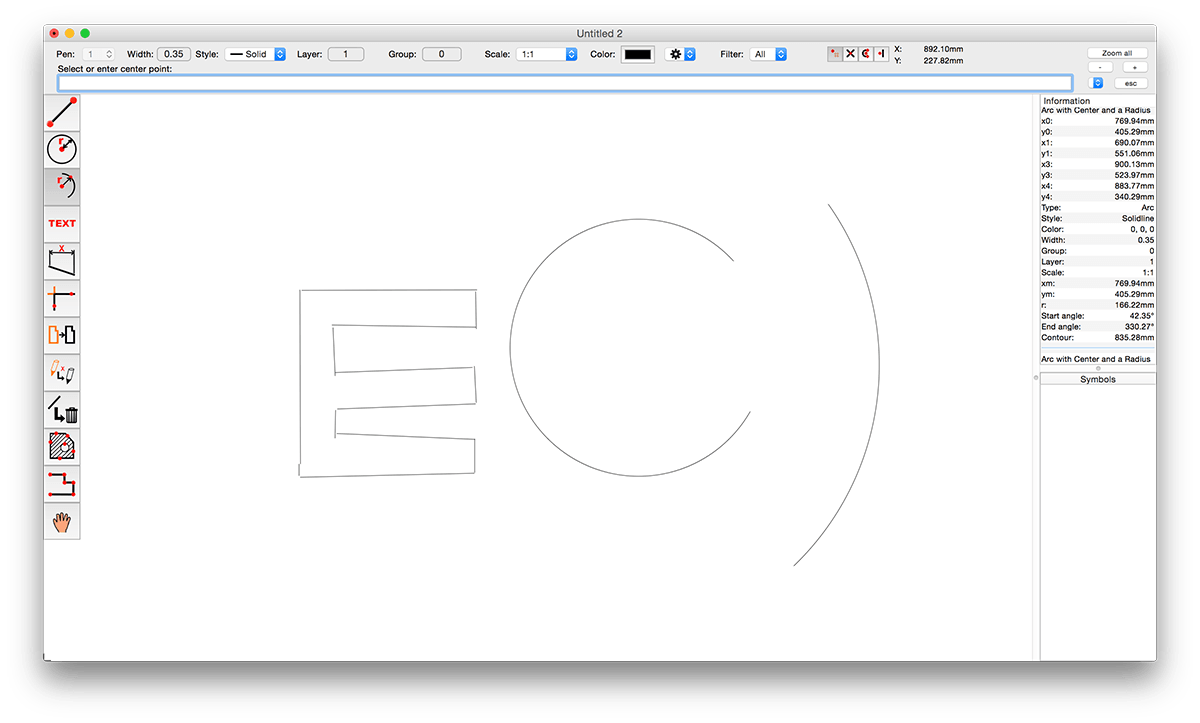

Screenshots:
